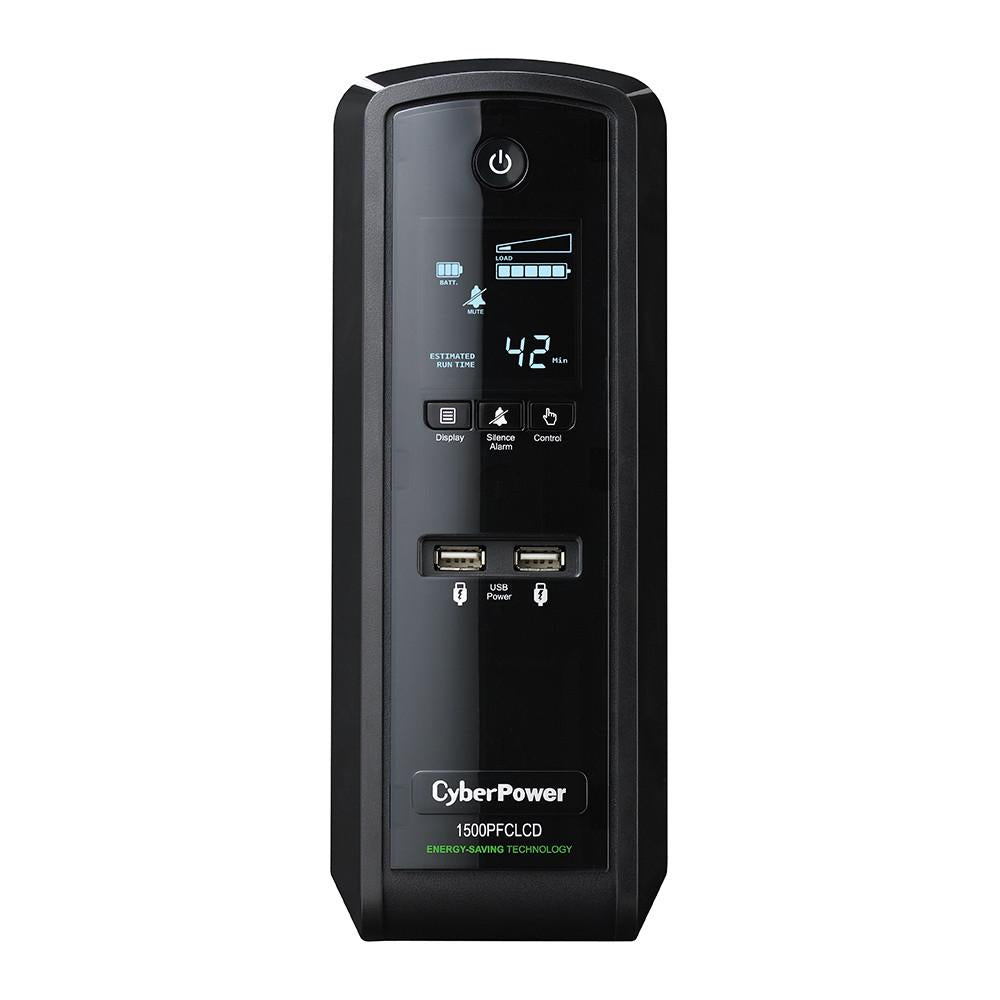

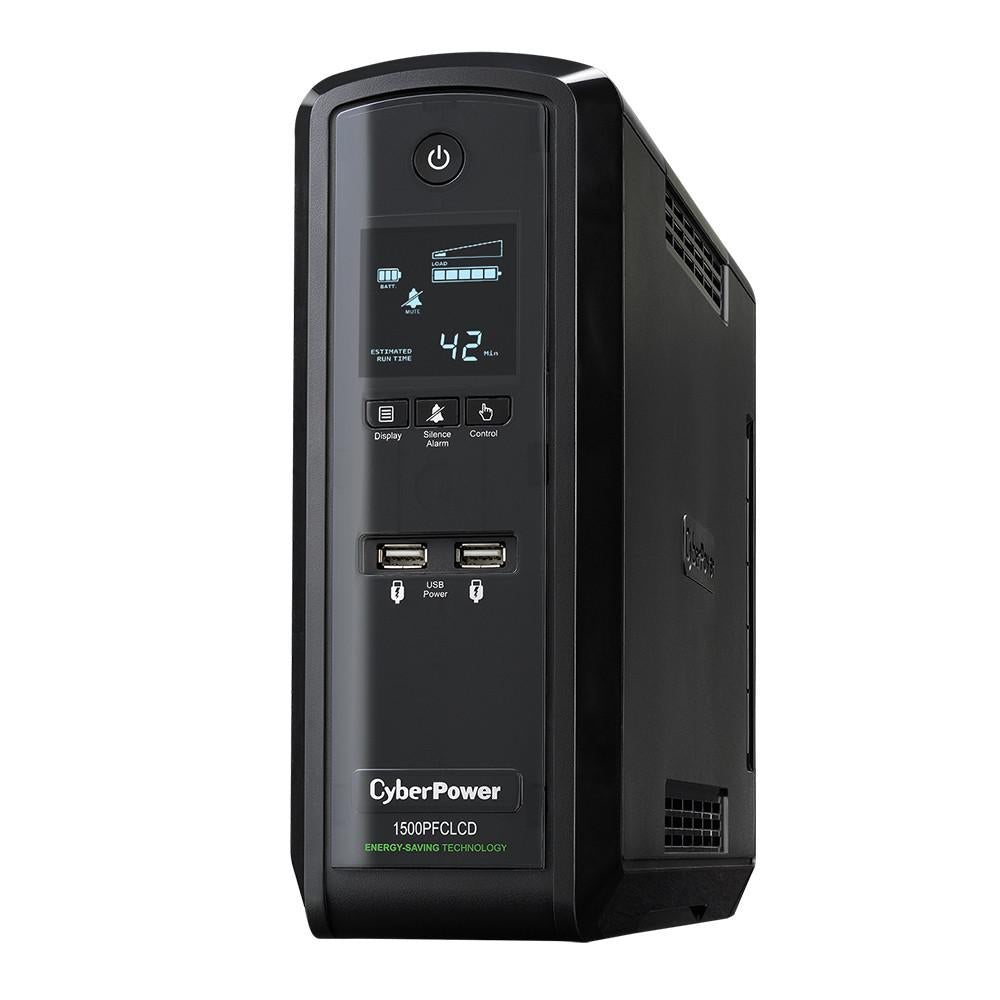

CyberPower CP1500PFCLCD PFC Battery Backup
- Vendor: CyberPower
- Product Type: Cables & Chargers
A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup, power protection (using sine wave output), and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
Two USB charge ports (1 Amp shared) power portable devices such as mobile phones, MP3 players, and cameras. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
Line Interactive Topology
Exists when a line interactive Battery Backup/ UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
Sine Wave Output
Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
USB Charge Ports
Charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Ultra Quiet Design
Minimizes noise during operation for a quieter work environment.
PowerPanel® Personal Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Connect your computer to the HID-compliant USB port or serial port (if available) to use the power management features provided by PowerPanel® Personal Edition software. Free software download available.
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
Desktop Computers
Workstations
Home Theater Equipment
Personal Electronics
Home Networking
Routers & Modems
VoIP Phone Systems
UPS System, User Manual, Telephone Cable, PowerPanel Personal Edition Software CD, Coaxial Cable, USB A+B Type Cable, Warranty Registration Card, Function Setup Guide
| General | |
|---|---|
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Active PFC Compatible | Yes |
| Input | |
| Voltage | 90 – 139 VAC |
| Frequency | 57 – 63 Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 5 ft |
| Adjustable Voltage Range | 78 – 142 VAC |
| Automatic Voltage Regulation (line mode) | 12% |
| Output | |
| VA | 1,500 VA |
| Watts | 900 W |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Waveform | Sine Wave |

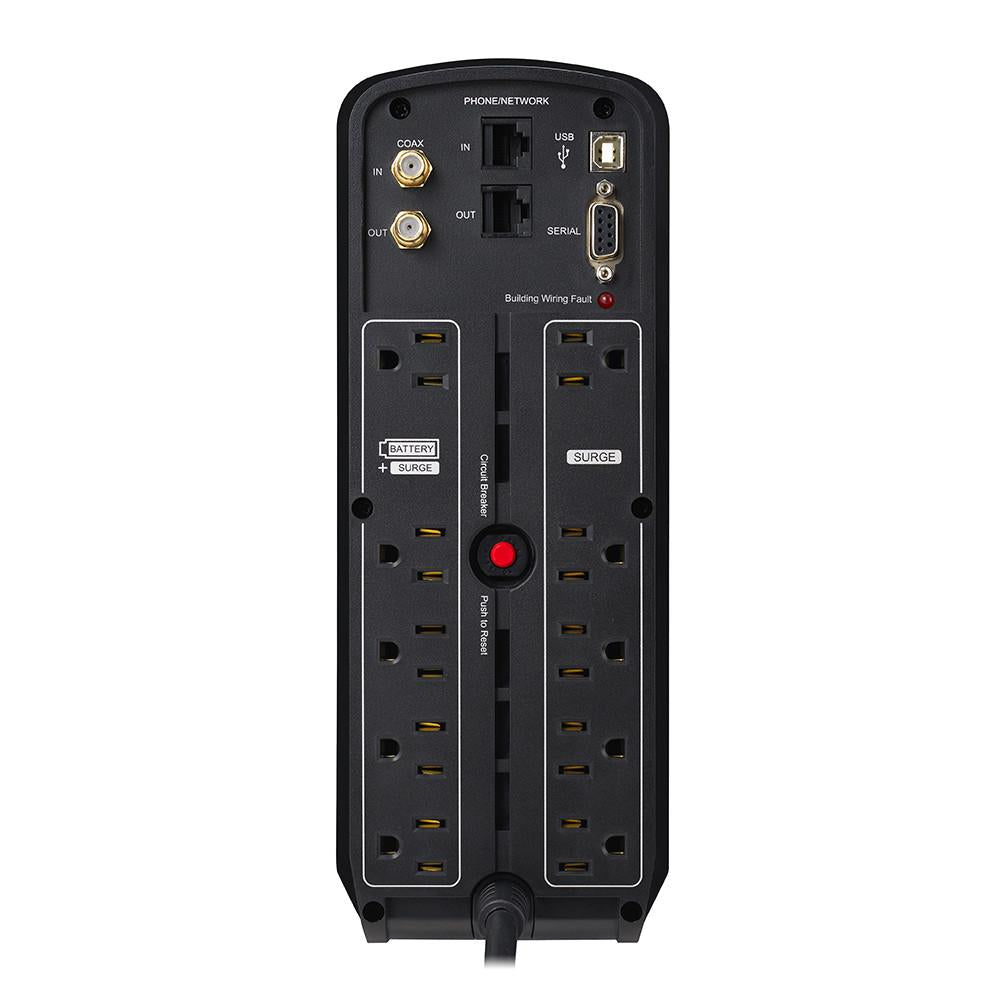

| Outlets - Total | 10 |
| Outlets - Battery & Surge Protected | 5 |
| Outlets - Surge-Only Protected | 5 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker |
| Transfer Time | 4 ms |
| USB Charge | Yes - Two (2) USB 5V/1A charging ports |
| Battery | |
| Runtime at Half Load | 11 minutes |
| Runtime at Full Load | 2 minutes |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/8.5Ah |
| Battery Quantity | 2 |
| Hot-Swappable | No |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1280X2B |
| Replacement Battery Cartridge Quantity | 1 |
| Typical Recharge Time | 8 hours |
| Surge Protection & Filtering | |
| Surge Suppression | 1,030 J |
| Coax Protection RG6 | 1-In, 1-Out |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Management & Communications | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| LED Indicators | Power On Wiring Fault |
| Audible Alarms | On Battery Low Battery Overload Fault |
| Software | PowerPanel® Personal Edition |
| Multifunction LCD Panel | Displays: Current/Load Level Runtime Battery Level AVR In Use Battery In Use Input Voltage Output Voltage Output Frequency Overload Silent Mode |
| Management Cable | USB Cable |
| Emergency Power Off (EPO) Port | No |
| Physical | |
| Form Factor | Mini-Tower |
| Dimensions - W×H×D (in) | 3.9 × 10.4 × 14.2 inches |
| Weight (lbs) | 24.7 lbs |
| Environmental | |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Humidity | 0 – 90% (non-condensing) |
| Certifications | |
| Safety | UL1778 cUL 107.3 FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $500,000 |
